    P50 Facade Media Programmable Led Display Screen With Low Wind Loading

    Ask Lasest Price
    Brand Name : Minvol
    Model Number : MH-G-2R2G2B-P31.25*50E
    Certification : CE/RoHS/FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200sqm/day
    Delivery Time : negotiable
    • Product Details
    • Company Profile

    P50 Facade Media Programmable Led Display Screen With Low Wind Loading

    Product description


    Indoor Outdoor P31.25 P50 LED Mesh Screen Curtain Display Transparent Media Facade Screen

    LED transparent screen has the characteristics of light weight, high brightness, high transparency and low wind loading, which breakthroughs many restrictions of building wall for traditional LED display. LED louver screen integrates the advantages of high resolution, high quality and high gray level of conventional LED display, fully combines centralized coontrol and long-distance transmission technology, which have totally solved the transmission problem caused by signal interruption of LED display.

    Product parameters


    Product Name:P31.25*50 LED transparent media screen
    Item No:MH-G-2R2G2B-P31.25*50E
    Light Source Brand:Epistar
    Light Source Model:346 2R2G2B DIP
    Size/Unit:1500mm(L)*800mm(H)
    Viewing Angle:H120°/V60°
    Power(W)/㎡:210W/sqm
    Average Power/㎡(W):70W/sqm
    Voltage:DC36-48V
    Pixel Pitch(mm):31.25mm(H)*50mm(V)
    Light Bar Size(mm):14mm*1500mm
    Resolution:16pixel*48pixel/Unit
    LED quantity/㎡(PCS):640 pixel/sqm
    Brightness(CD/㎡):>5760CD/sqm
    Grey Scale:65536
    Refresh Rate(Hz):>5000Hz
    Transparency:>72%
    Weight:9kg/sqm
    Protection Grade:IP67
    Operation Temperature:-20℃~50℃
    Life Time:≥50000 hours
    Related Cert.:CE RoHS FCC

    Product pictures



    Module size



    Product Installation Schematic



    Control Diagram

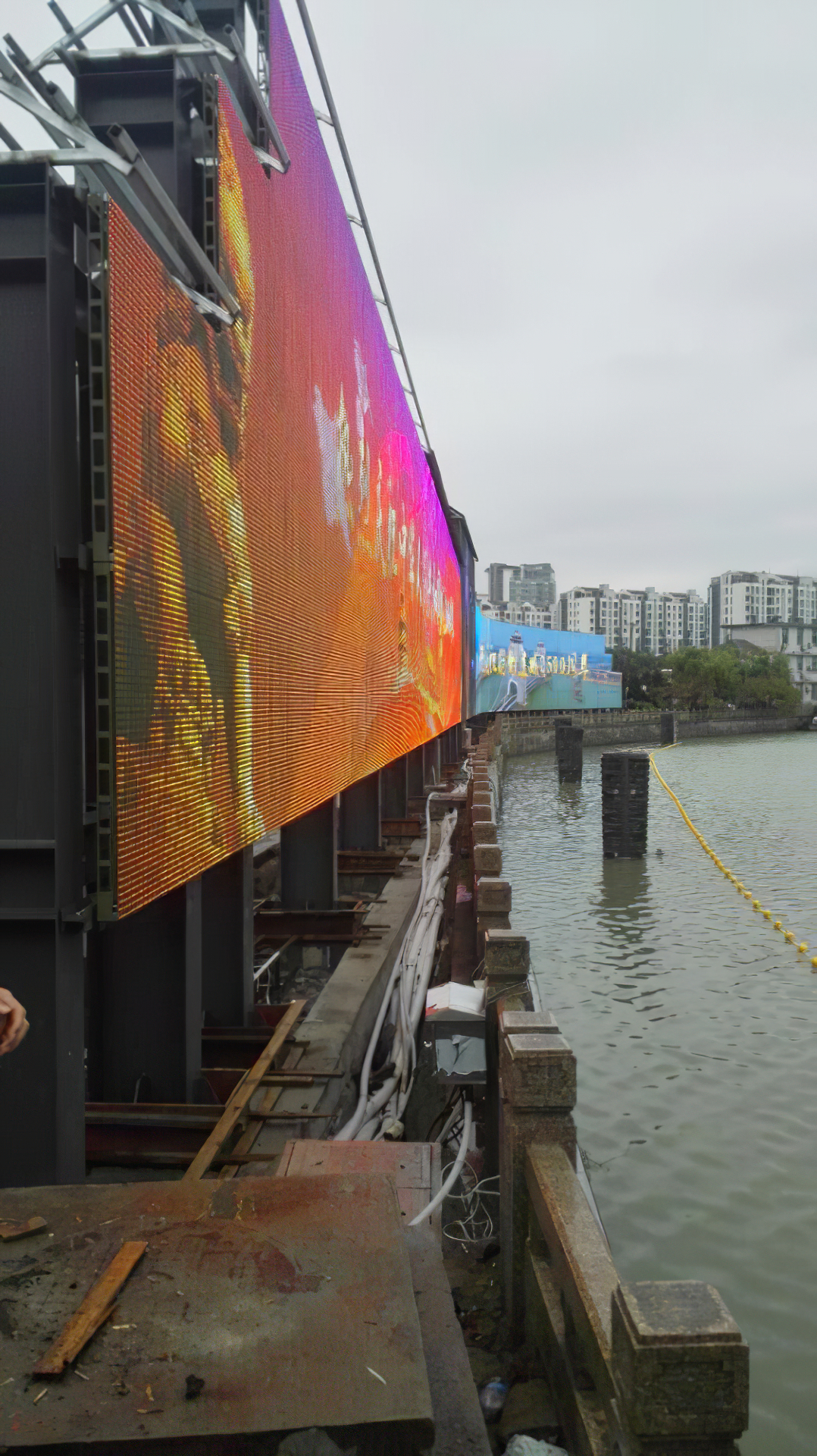

    Projects pictures
