    P25 Manufacturer Customized Full Color Outdoor Glass Mesh Transparent Glass Window Film Led Screen

    Ask Lasest Price
    Brand Name : Minvol
    Model Number : MH-D-SMD-P25*25E
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200sqm/day
    Delivery Time : 15-25 Days
    • Product Details
    • Company Profile

    P25 Manufacturer Customized Full Color Outdoor Glass Mesh Transparent Glass Window Film Led Screen

    P25 Manufacturer Customized Full Color Outdoor Glass Mesh Transparent Glass Window Film Led Screen


    Features


    1. Easy control

    Adopting parallel transmission, each light bar can work independently, do not effect other light bars work. Light bar can be customized to meet any different requirements.

    2. High level protection

    IP67, it is suitable for indoor or outdoor application. It use aircraft aluminum extrusion, the surface is treated with special environmentally-friendly dichromate solution, with good cooling and anti-corrosion function.

    3. Light weight

    The weight is less than 11kg per square meter; easy to transport, and easy to control labor and delivery cost.

    Product parameters
    Product Name:P25*25 LED louver screen
    Item No:MH-D-SMD-P25*25E
    Light Source Brand:Epistar
    Light Source Model:SMD3535
    Size/Unit:1200mm(L)*400mm(H)
    Viewing Angle:H120°/V120°
    Power(W)/㎡:450W/sqm
    Average Power/㎡(W):150W/sqm
    Voltage:DC36-48V
    Pixel Pitch(mm):25mm(H)*25mm(V)
    Light Bar Size(mm):10.5mm*1200mm
    Resolution:16pixel*48pixel/Unit
    LED quantity/㎡(PCS):1600pixel/sqm
    Brightness(CD/㎡):>4800CD/sqm
    Grey Scale:65536
    Refresh Rate(Hz):>5000Hz
    Transparency:>58%
    Weight:11kg/sqm
    Protection Grade:IP67
    Operation Temperature:-20℃~50℃
    Life Time:≥50000 hours
    Related Cert.:CE RoHS FCC

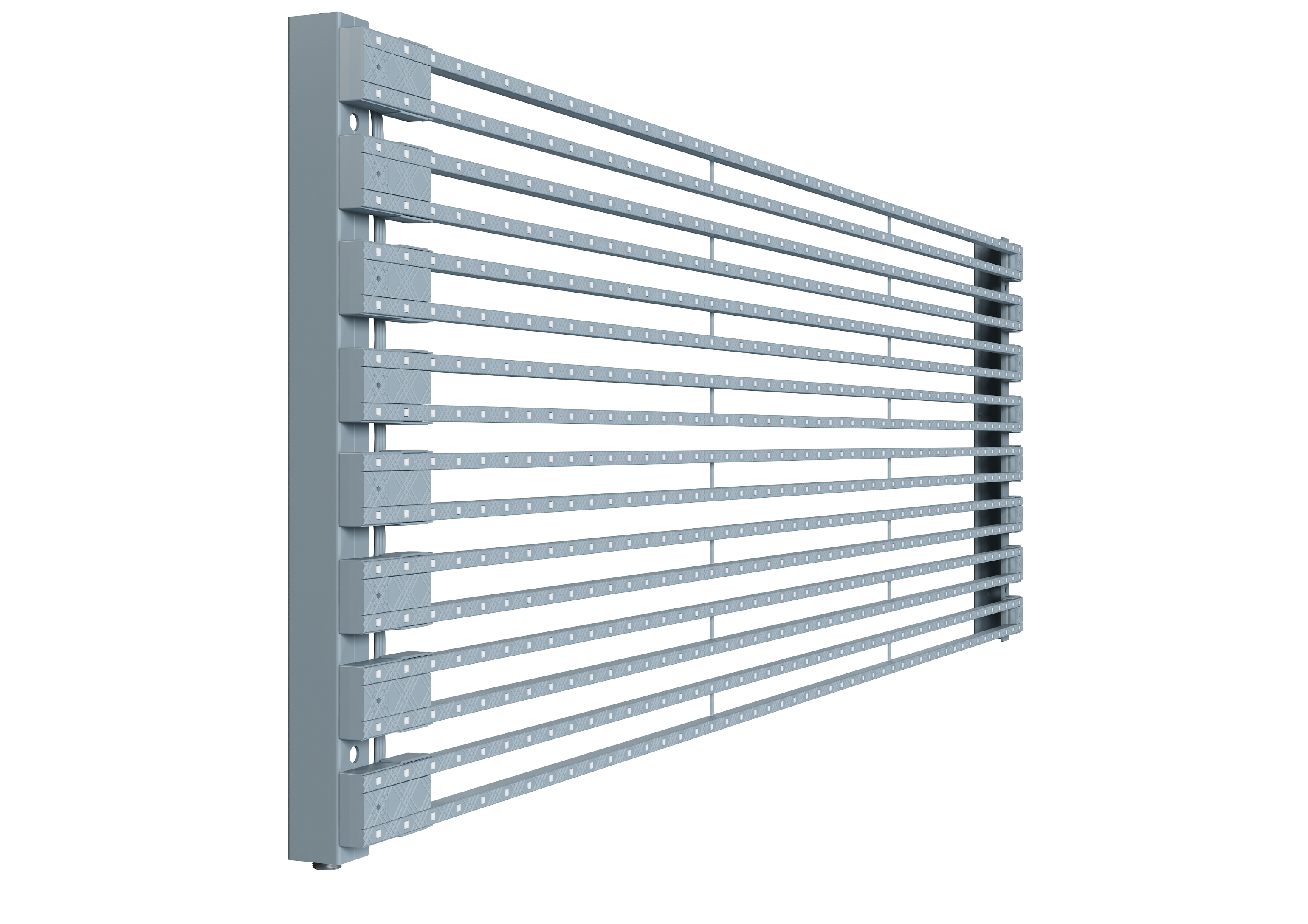

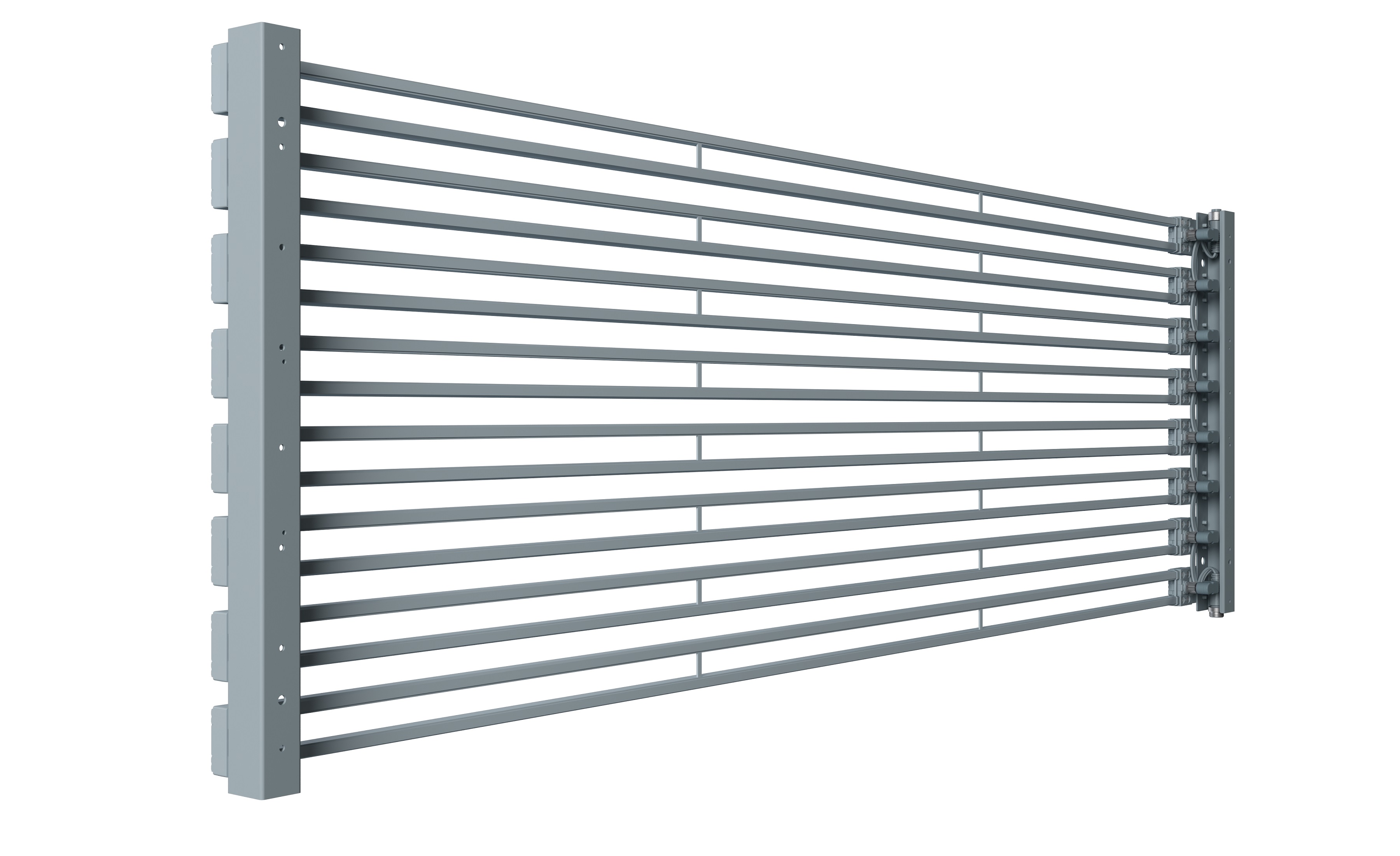

    Product pictures:
    Module size:

    Product Installation Schematic



    Control Diagram

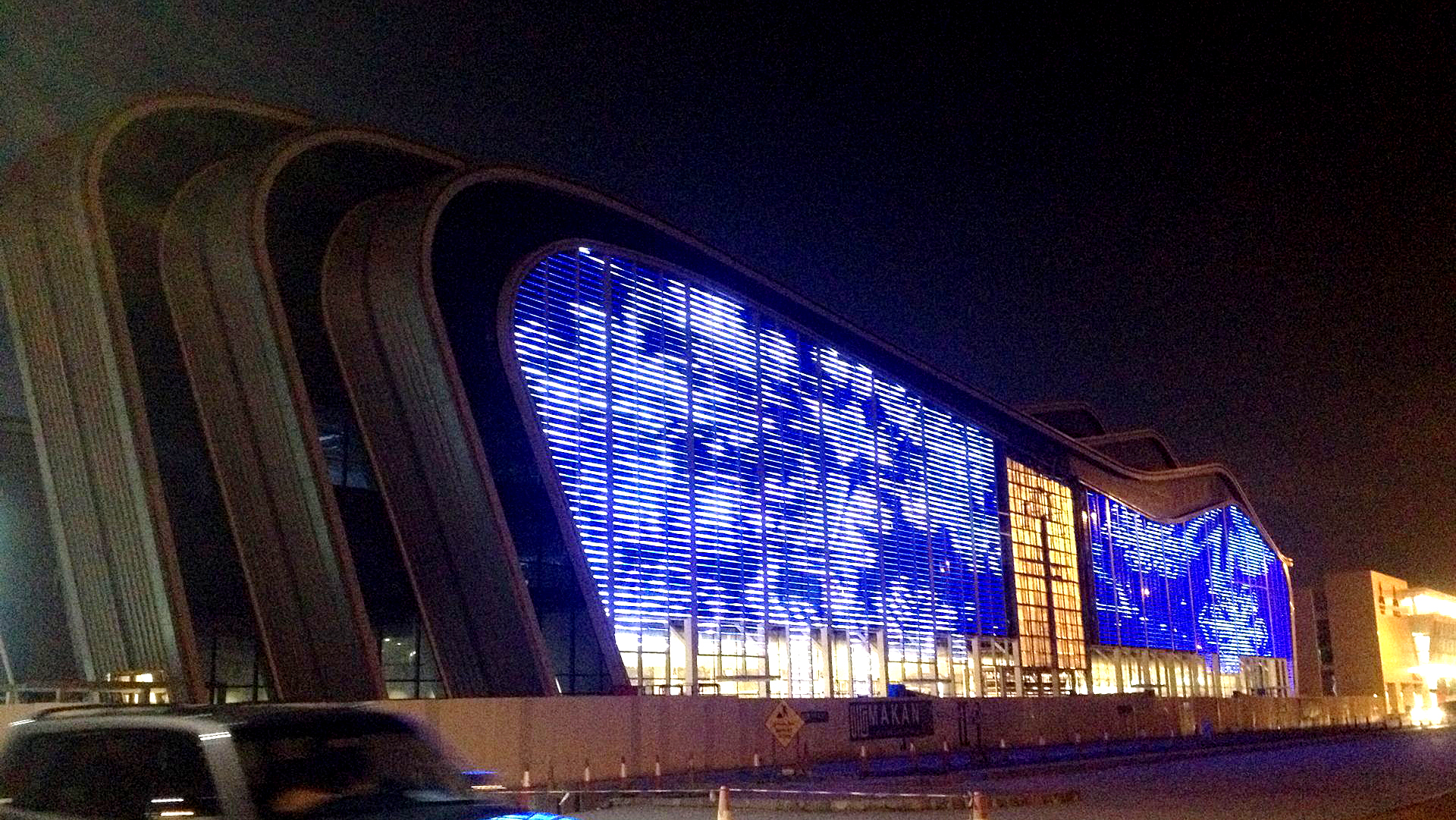

    Projects pictures
